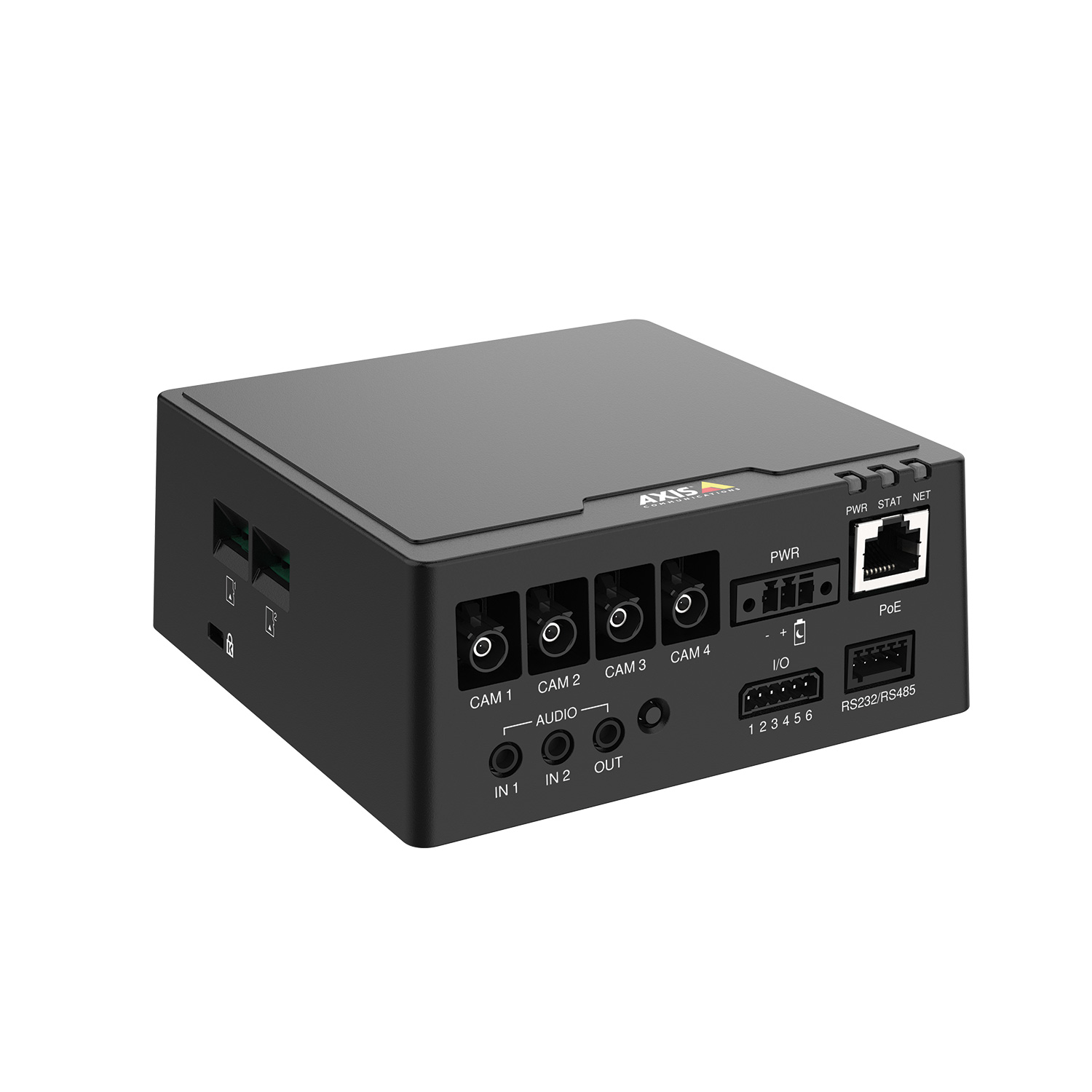

AXIS F9114 Main Unit

AXIS F9114 Main Unit is a 4-channel main unit part of the 2nd generation F-series video sensors. Up to 4x F21, F7225-RE or F4105-LRE video sensors can be connected to it. It also has 2 Audio IN, 1 Audio Out, 4x configuration I/O, 1 RS 232/485, 1x 10-48V DC. It has an Ethernet port and PoE Class 4. Max 25, 5W. AXIS F9114 Main Unit is designed for use with 2nd generation video sensors and cables from AXIS F Series. With SMA-FAKRA connectors it withstands vibrations and ensures a durable installation. It supports 1080p at 30 fps or 720p at 60 fps.

AXIS TU6009 Connector 6-pin (for the I/O port), AXIS TU6008 Connector 5-pin (for RS port) and AXIS TU6001 Connector 3-in (for DC power) have to be purchased separately.

AXIS F9114 main unit is NOT compatible with the 1st generation of F-series sensors (F1005-E, F1015-E, F1025-E, F1025 F4005, F4005-E)

Product Number: 01991-001
SKU: 7331021070516
