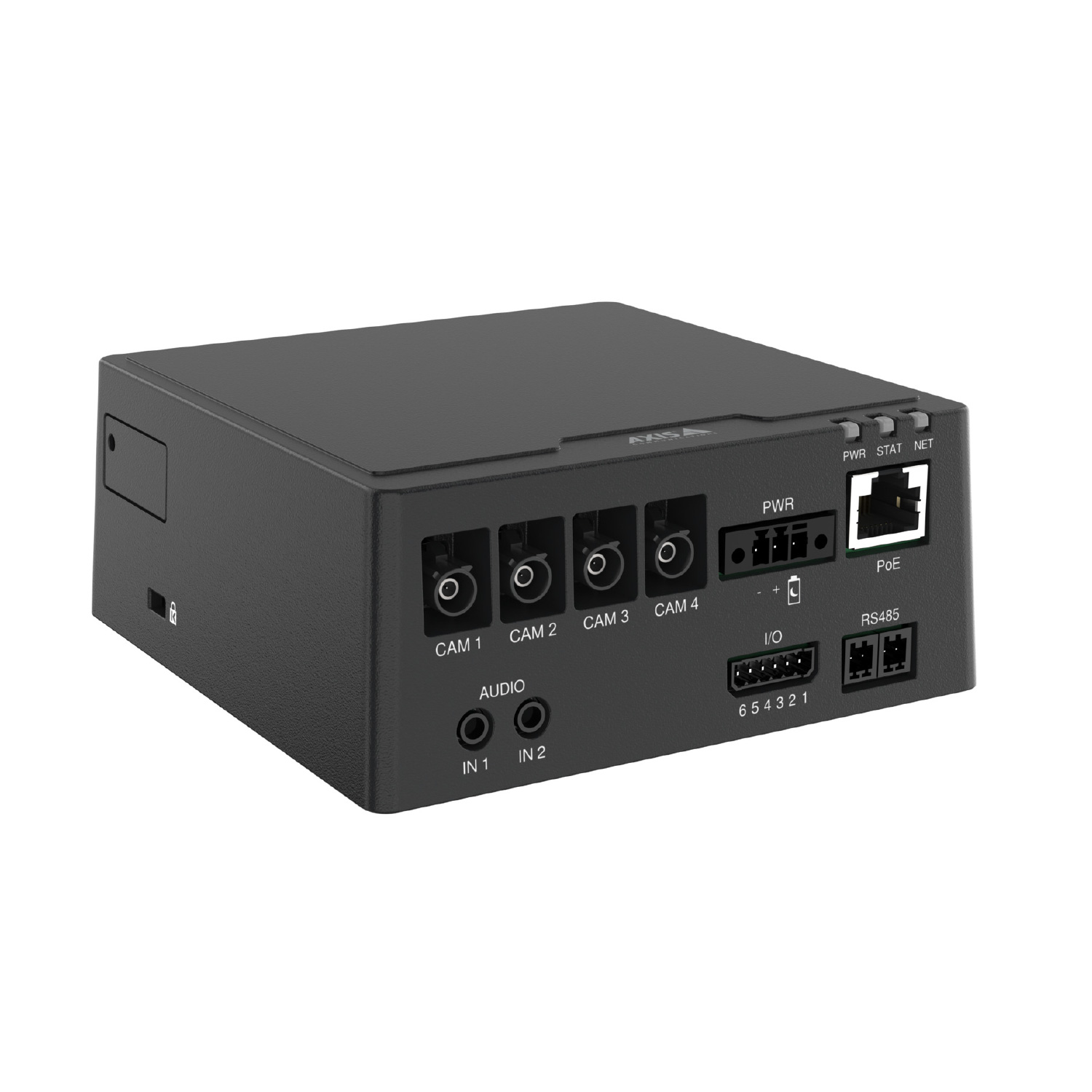

The AXIS F9114-R Mk II is a 4-channel main unit, part of the F-series, designed to support the connection of up to 4 F21, F72, or F41 sensor units. This unit provides a wide range of connectivity options, including 2 audio input ports, 4 configurable I/O ports, and 1 RS485 serial port, offering flexibility for various surveillance and monitoring applications. It features both 10-48V DC power input and Power over Ethernet (PoE) Class 4, with a maximum power consumption of 25.5W, allowing for efficient power management during operation. The unit also includes a USB A port for external devices and an Ethernet port for seamless network connectivity. For installation, additional connectors are required, including the AXIS TU6009 Connector 6-pin (for the I/O port), AXIS Connector A 2-pin 2.5 Straight (for the serial port), and AXIS TU6001 Connector 3-in (for the DC port). These connectors must be purchased separately to complete the setup. The AXIS F9114-R Mk II provides a versatile, high-performance solution for larger surveillance systems that require multiple sensor connections, delivering reliable and efficient monitoring capabilities.
Product Number: 02999-001
SKU: 7331021087460
