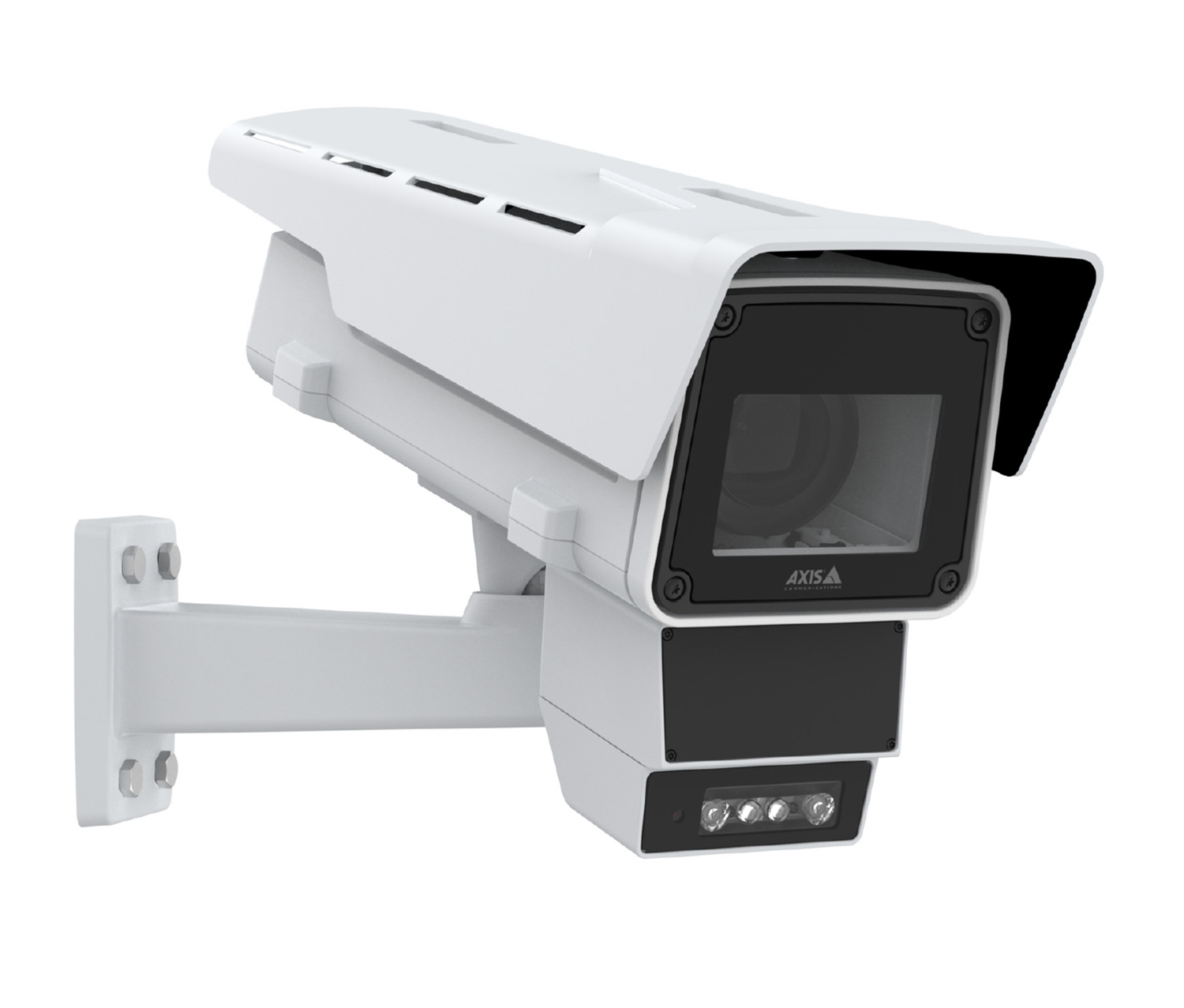

AXIS Q1686-DLE Radar Video Camera

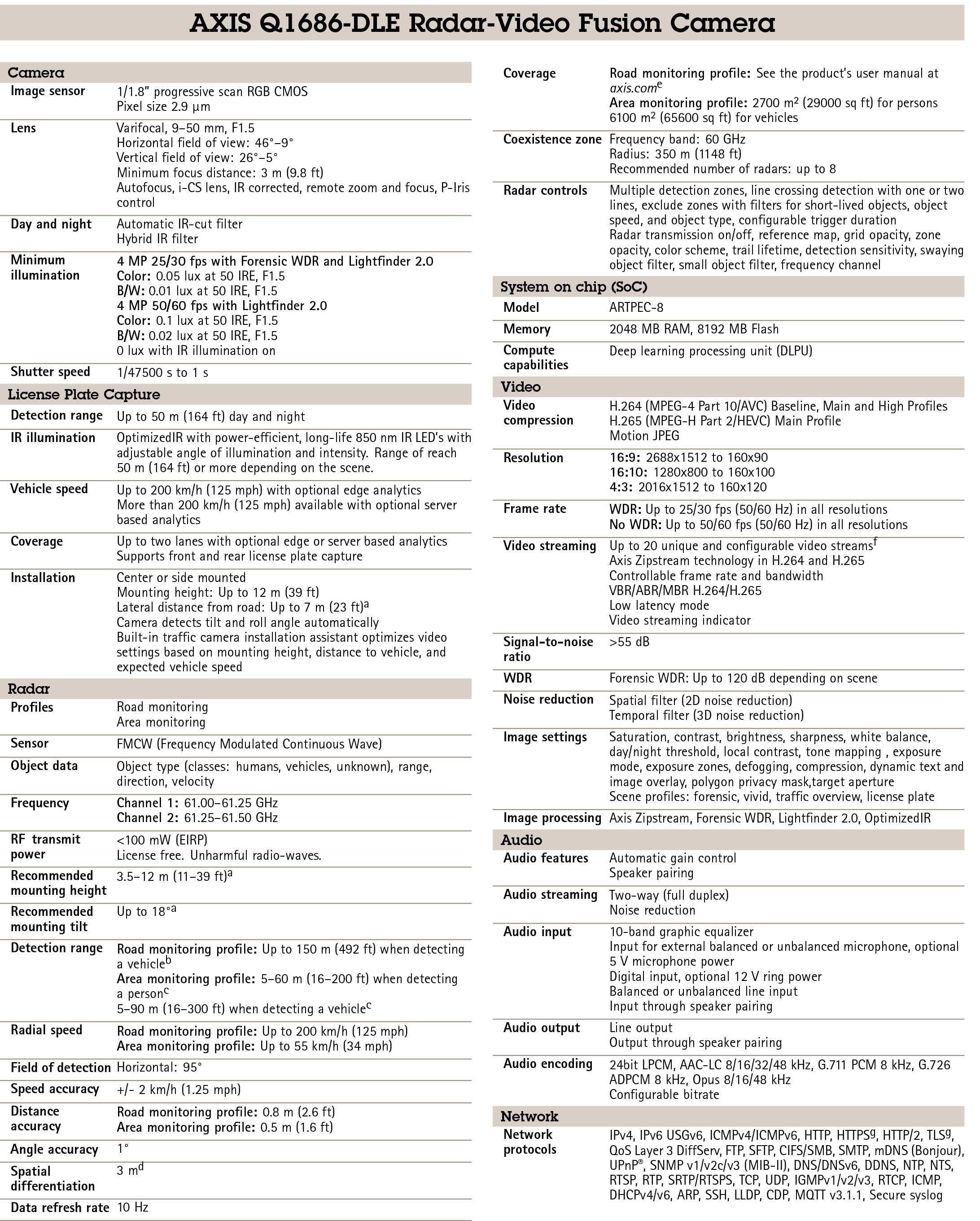

The AXIS Q1686-DLE Radar-Video Fusion Camera is an advanced solution designed for high-performance traffic surveillance and security applications. By integrating radar and visual sensor data in one device, it provides a powerful tool for speed monitoring, license plate recognition, and directional alerts. The fusion of radar and video data on the edge makes this camera ideal for applications like wrong-way driving detection, traffic flow analysis, and other traffic safety measures. Equipped with a 1/1.8” image sensor, the AXIS Q1686-DLE delivers high-definition 4 MP video quality, ensuring clear and detailed imaging in both day and night conditions. Its rugged, outdoor-ready design is built to withstand harsh environments, featuring a NEMA 4X-rated, IP66, and IP67 weatherproof enclosure, as well as impact resistance. This durability ensures reliable performance in challenging weather conditions and demanding installations.

The camera includes a Deep Learning Processing Unit (DLPU), enhancing its ability to identify and track objects in real-time, particularly vehicles. With image optimization tailored for specific traffic use cases, including license plate capture and traffic capture profiles, the camera ensures superior performance in capturing detailed vehicle images, especially in low-light or nighttime environments. The Lightfinder 2.0 technology further improves image quality in poor lighting, while the OptimizedIR system with a powerful 850nm IR illuminator ensures excellent nighttime visibility without compromising power efficiency. The camera is fitted with a varifocal 9-50mm F1.5 i-CS lens that allows for remote zoom and focus adjustments, providing flexibility in adapting the field of view to suit specific surveillance needs. The integrated radar unit, operating in the 60.0 GHz-61.5 GHz range with a 95-degree horizontal field of detection, offers advanced radar-video fusion capabilities. It provides built-in analytics for vehicle classification, customizable detection zones, and the ability to filter based on distance. The radar also supports multiple line crossing detection, adding further precision to monitoring and alerting systems.

For video streaming, the AXIS Q1686-DLE supports multiple, individually configurable streams, including H.264, H.265 with Zipstream, and Motion JPEG formats. This allows for efficient bandwidth and storage management, especially with Zipstream’s intelligent compression technology. The camera can stream 4 MP video at up to 60 frames per second (fps) for smooth, high-definition video capture, and it maintains 30 fps when Wide Dynamic Range (WDR) is activated, making it ideal for environments with varying lighting conditions.

In terms of security and monitoring, the camera features radar motion detection, AXIS Speed Monitor for tracking vehicle speed, shock detection to alert users to potential tampering or impacts, and an active tampering alarm. These features ensure real-time detection and response to security events. Furthermore, Axis Edge Vault, with a FIPS-certified Trusted Platform Module (TPM), adds an extra layer of cyber security to protect against unauthorized access and tampering.

The camera is equipped with several advanced image-enhancement features, such as barrel distortion correction, defogging, electronic image stabilization, and electronic radar stabilization. These features ensure clear, stable video feeds even in challenging environments. Scene profiles allow for customizable configurations based on the specific needs of the deployment. Additional features include support for MQTT, two-way audio with optional analog or digital microphones for audio detection, and supervised I/O for alarm/event handling. A MicroSD/MicroSDHC memory card slot allows for optional local video storage, while a serial port supports RS422/485 communication for further integration with external systems.

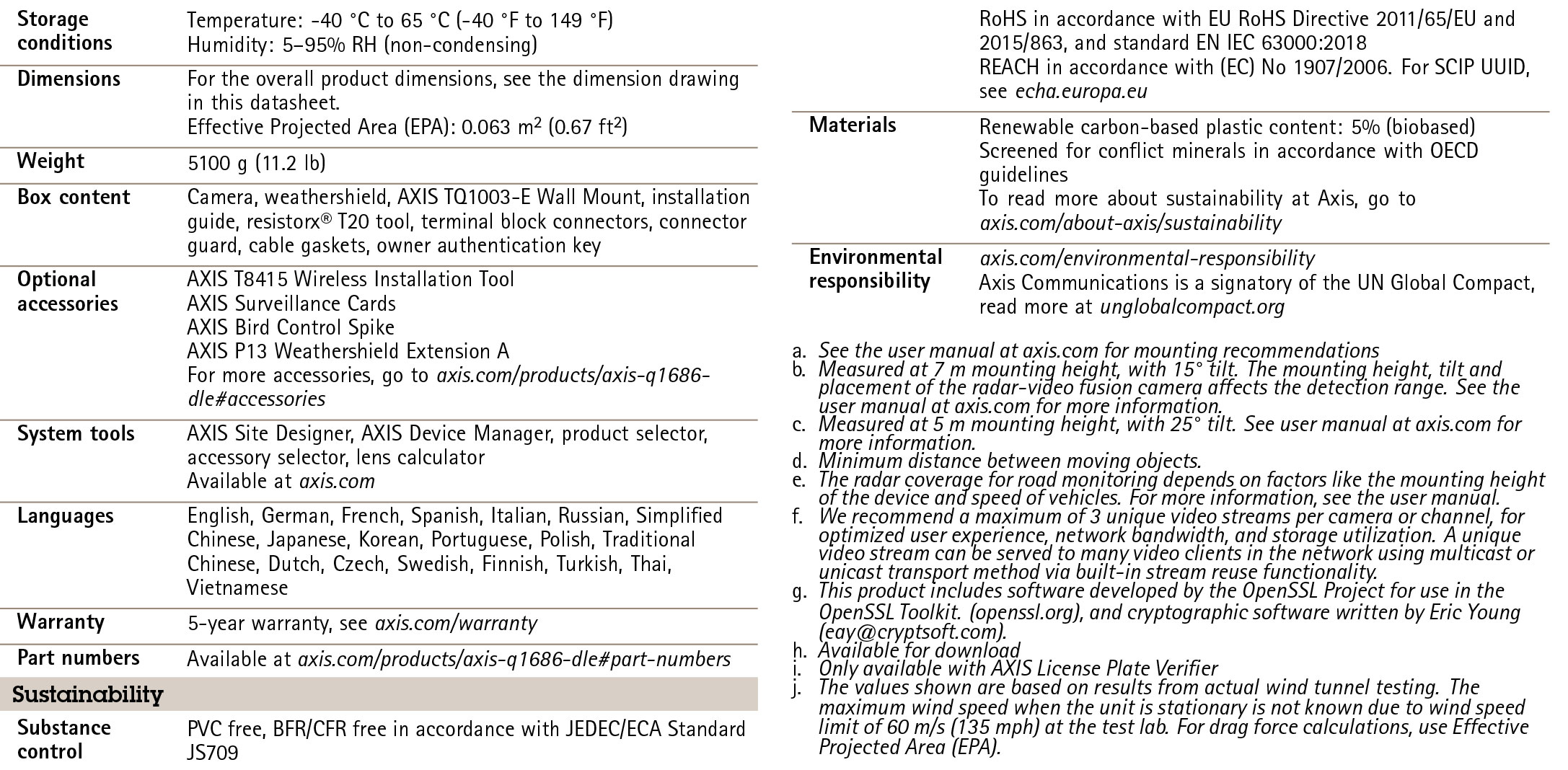

The camera is powered via IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28 V DC with redundancy, ensuring reliable operation even in power-sensitive environments. With a built-in heater and Arctic Temperature Control, it can operate in extreme temperatures ranging from -40°C to +60°C (-40 ºF to 140 ºF), making it suitable for deployment in a variety of climates. The included removable sunshield, wall bracket, Torx T20 screwdriver, and cable glands facilitate easy installation, though a midspan or power supply is not included. The AXIS Q1686-DLE is compliant with various radio and safety standards, including EN 300440, EN 301489-1, EN 301489-51, EN 62311, and FCC Part 15 Subpart C, ensuring its reliability and compatibility for global use in traffic and surveillance applications.

Product Number: 02968-001
SKU: 7331021086913
